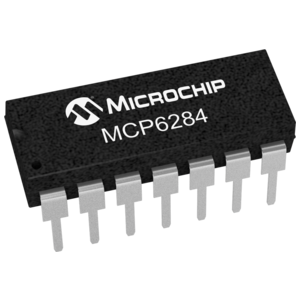

MCP6284-E/P

The Microchip Technology Inc. MCP6281/1R/2/3/4/5 family of operational amplifiers (op amps) provide wide bandwidth for the current. This family has a 5 MHz Gain Bandwidth Product (GBWP) and a 65° phase margin. This family also operates from a single supply voltage as low as 2.2V, while drawing 450 µA (typical) quiescent current. Additionally, the MCP6281/1R/2/3/4/5 supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300mV to VSS – 300 mV. This family of operational amplifiers is designed with Microchip’s advanced CMOS process. The MCP6285 has a Chip Select (CS) input for dual op amps in an 8-pin package. This device is manufactured by cascading the two op amps (the output of op amp A connected to the non-inverting input of op amp B). The CS input puts the device in Low-power mode. The MCP6281/1R/2/3/4/5 family operates over the Extended Temperature Range of -40°C to +125°C. It also has a power supply range of 2.2V to 6.0V.

  MCP6281/1R/2/3/4/5, 450 µA, 5 MHz Rail-to-Rail Op Amp (02/10/2010)

• Input Offset Voltage: ±3 mV (max)
• Quiescent Current: 445 µA (typical)
• Common Mode Rejection Ratio: 65 dB (typical)
• Power Supply Rejection Ratio: 70 dB (typical)
• Rail-to-Rail Input/Output
• Supply Voltage Range: 2.2V to 6V
• Gain Bandwidth Product: 5 MHz (typical)
• Slew Rate: 2.5V/µs (typical)
• Unity Gain Stable
• Extended Temperature Range: -40°C to +125°C
